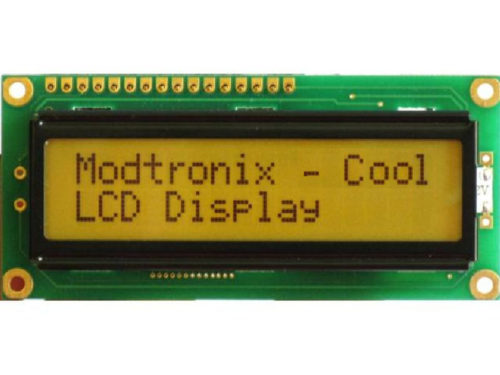

LCD 2x16, Black Characters, Amber Backlight


Out of stock

SKU: CSC0-311Code: LCD162B-FHA

US$ 8.42


LCD Character Module Display, 2x16 characters, FSTN black, amber LED backlight, Transflective, 6:00, Wide Temepature range, RoHS compliant, Module size 80mm x 36mm, English-European character set.

This LCD display uses FSTN technology, which has a better contrast, and a wider viewing angle than STN and TN types. This display also has a wider temperature range. Be careful when buying cheap LCD displays! Many fade after a short while. We have been using these LCD displays for many years, and can guarantee they are high quality!

Click to enlarge


  • Number of Characters: 16 characters x 2 Lines
  • Character Table: English-European (RS in Datasheet)
  • Module dimension: 80.0mm x 36.0mm x 13.2mm(MAX)
  • View area: 66.0 x 16.0 mm
  • Active area: 56.2 x 11.5 mm
  • Dot size: 0.56 x 0.66 mm
  • Dot pitch: 0.60 x 0.70 mm
  • Character size: 2.96 x 5.46 mm
  • Character pitch: 3.55 x 5.94 mm
  • LCD type: FSTN, Positive, Transflective, black
  • Duty: 1/16
  • View direction: Wide viewing angle
  • Backlight Type: amber LED
  • RoHS Compliant: lead free
  • Operating Temperature: -20°C to + 70°C


What is included

  • 1 x LCD Display

Package Includes

1 x Item as described above
